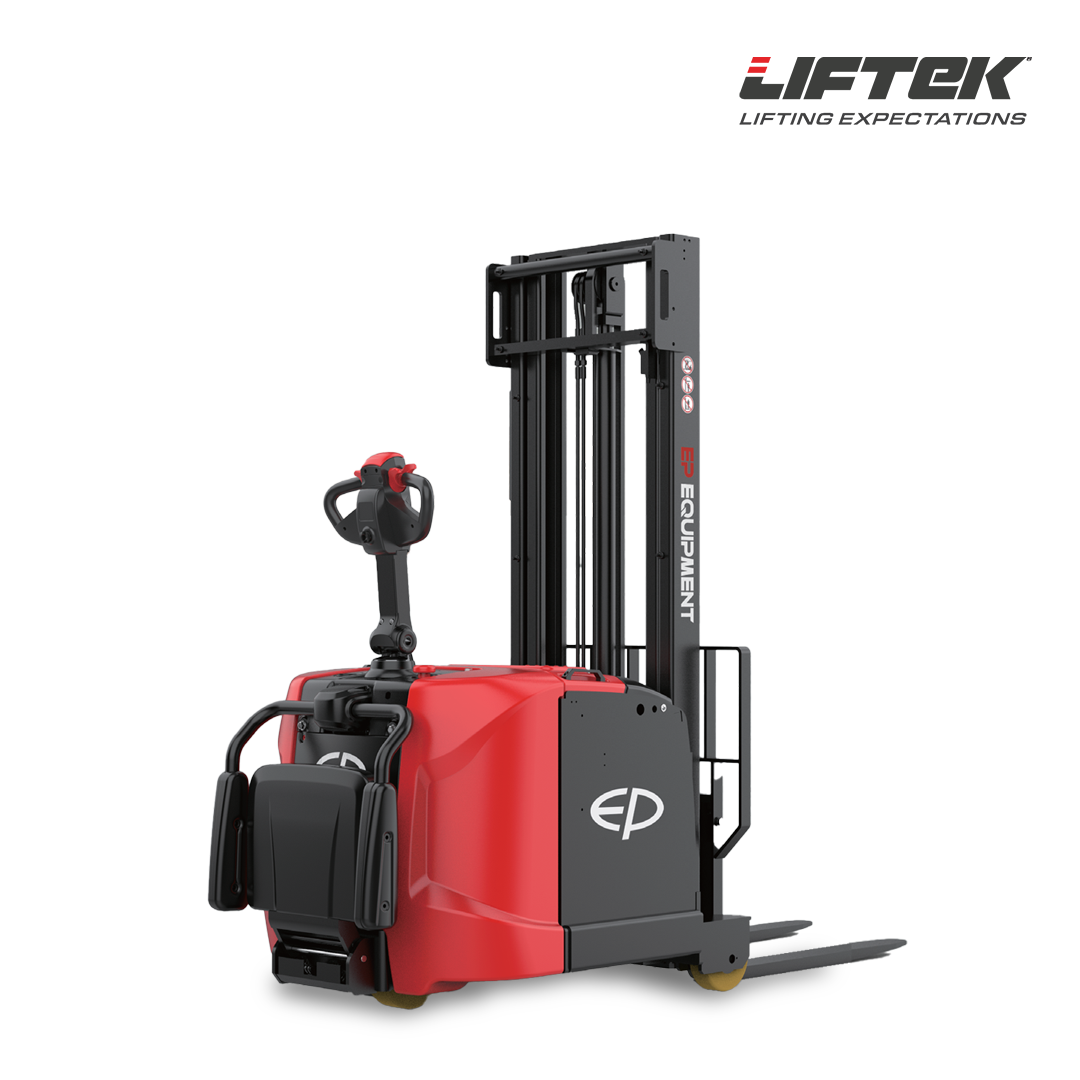

LIFTEK PowerStack Electric Counterbalance Stacker 800kg / 1200kg capacity

POA

Delivery 3-5 days
Guarantee 12 months

Ordering Multiple Units?

Speak to an account manager for discounts on 0333 015 5409

SKU: LTS082CB / LTS122CB Categories: , Tag:

Capacity: 800kg / 1200kg, Fork Length: 1070mm (other dimensions available), Retractable Mast Height 2061mm, Lift Height: 3000mm.

The PowerStack is an electric counterbalance stacker, with a capacity of 800kg / 1200kg at heights up to 3m.  It features a foldable platform for long-distance operation with minimal operator effort and fast travelling speed for efficient operations.  Equipped with a rigid mast and forks, this stacker is suitable for all types of pallets.

Key Features:

  • Universal stacker for all kinds of pallets and loads.
  • Proportional lifting system offering utmost precision.
  • A foldable platform for long travelling without operator effort.
  • High ground clearance for smooth travel on uneven surfaces.
  • Compact size suitable for limited space.

Additional information

Capacity (KG)

1200 kg, 800 kg

Lift Height (m)

3000 mm

Fork Length (mm)

1070 mm

Technical Specification

Load capacity (kg)
800kg / 1200kg
Drive
Electric
Service Weight (kg)
1540kg / 1700kg
Retracted mast height (mm)
2061 mm
Lift height (mm)
3000 mm
Length to face of forks (mm)
1486 mm / 1748 mm
O/A Width (mm)
900mm
Fork Dimensions (mm)
35x100x1070mm
Turning radius (mm)
1295 mm / 1577 mm
Max. gradeability, laden/unladen (%)
5/8
Travel speed laden/unladen (km/h)
5.5/6km/h
Battery Voltage (V/Ah)
24V/165AH /210AH
